Optical Module Optical Power Test

Optical power testing ensures that optical modules transmit and receive signals within specified ranges, maintaining network performance and reliability.

Key Concepts

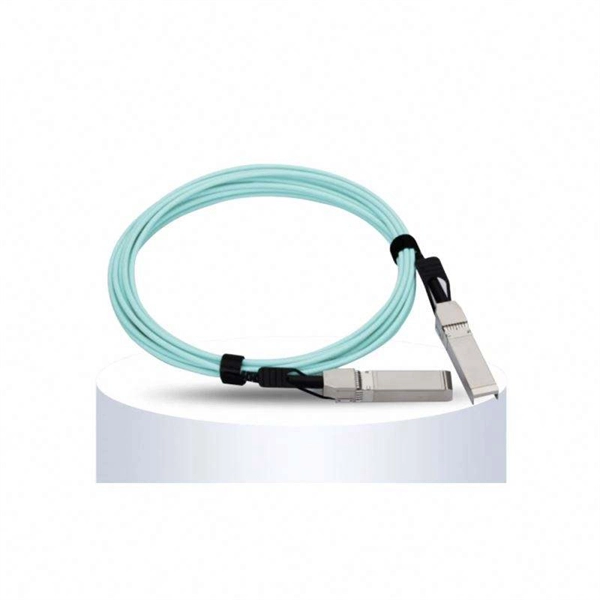

Optical modules integrate a transmitter and receiver to deliver high-speed data over fiber. Testing optical power involves measuring both transmit (Tx) power and receive (Rx) sensitivity to confirm the module operates within specifications . Deviations in optical power can cause bit error rate (BER) spikes or equipment damage, making regular testing essential .

Equipment Required

• Optical Power Meter (OPM): Measures the absolute optical power exiting a fiber or module. Most meters use Si, Ge, or InGaAs detectors depending on wavelength and power levels .
• Optical Attenuators: Adjust signal levels to test receiver sensitivity.
• Reference Cables or Patchcords: Known-good fibers to ensure accurate coupling.
• Digital Diagnostic Monitoring (DOM/DDM): Built-in module feature providing real-time Tx power readings via network equipment .
• Bit Error Rate Testers (BERT): Verify data integrity at target data rates .

Testing Procedure

1. Pre-Test Preparation: Clean all fiber connectors and adapters, wear safety glasses, and ensure the optical power meter is calibrated to the correct wavelength .
2. Transmit Power Measurement: Connect the module to the OPM using a reference cable. Record the Tx power and compare it to the module datasheet. Use DOM if available for real-time monitoring .
3. Receiver Sensitivity Verification: Use optical attenuators to gradually reduce input power and determine the minimum power at which the module maintains acceptable BER .
4. Signal Integrity Analysis: Perform eye diagram analysis to assess timing, noise tolerance, and extinction ratio, which reflect transmitter performance .
5. Environmental Testing: Conduct high- and low-temperature aging tests to evaluate long-term stability and reliability under operational conditions .
6. Documentation: Record all measurements, deviations, and test conditions for quality control and troubleshooting.

Best Practices

• Test modules during initial setup and periodically to detect drift in Tx power .
• Avoid exceeding maximum input power to prevent receiver damage .
• Compare measured values against datasheet specifications and industry standards such as TIA FOTP-95 .
• Use proper adapters and reference cables to minimize coupling loss and measurement errors .

Summary

Optical power testing is a critical step in ensuring network reliability and module performance. By using calibrated optical power meters, DOM features, and BER testing, engineers can verify that optical modules meet required specifications, detect early degradation, and prevent network outages .
