High-efficiency fiber optic couplers
High-performance fiber optic couplers provide precise, low-loss connections for single-mode, multimode, and polarization-maintaining fibers, optimized for high-speed, high-power, and broadband applications.
Types and Fabrication Methods
1. Fusion Couplers:
- Made by melting twisted fiber sections.
- Offer lowest insertion loss (~0.3 dB) and high power handling up to 100 W.
- Limited wavelength bandwidth (±40 nm) and polarization extinction ratio below 23 dB.
- Ideal for applications requiring minimal signal loss and high thermal tolerance (up to 300°C) . 2. Micro-Optic Couplers:
- Constructed by coupling two lensed fiber collimators with an optical element.
- Provide ultra-broad bandwidth (±200 nm), high polarization extinction ratio (>30 dB), and excellent thermal stability.
- Allow integration of filters and polarizers, suitable for advanced optical systems, though at higher cost . 3. Planar Lightwave Circuit (PLC) Couplers:
- Fabricated using photolithography and etching.
- Compact, cost-effective, and suitable for high fiber counts.
- Offer broad bandwidth (±200 nm) but higher coupling loss and lower power handling due to epoxy-based light paths.
- Typically feature fixed splitting ratios, with custom ratios available at higher setup costs .
Connector Compatibility and Materials

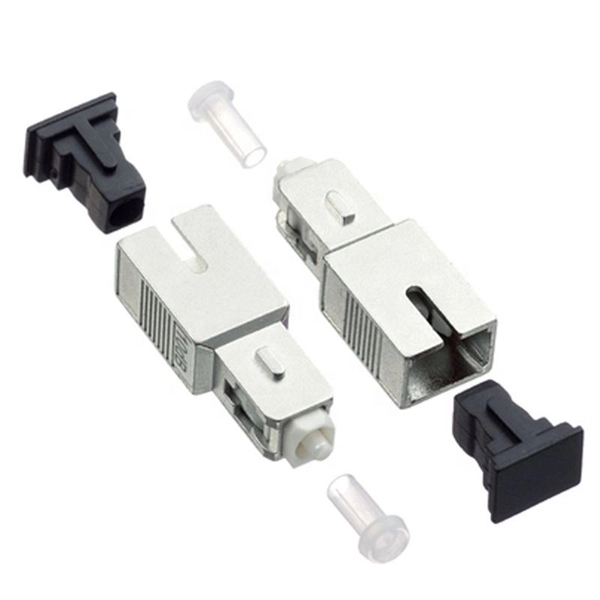

- High-performance couplers are compatible with LC, SC, ST, and APC connectors.
- Premium materials like zirconia ceramic for single-mode and phosphor bronze for multimode ensure durability and low insertion loss .

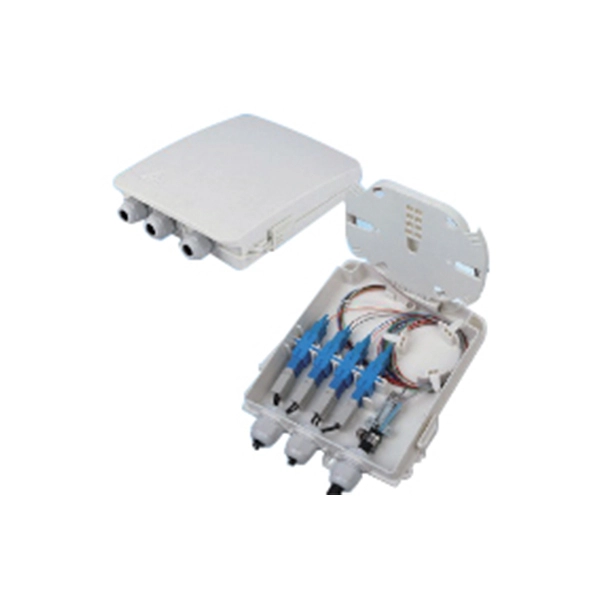

- Configurations include simplex, duplex, and quad, with options for flanged or flangeless designs, supporting flexible installation in patch panels, wall mounts, and distribution boxes .
Applications
- Telecommunications and Data Centers: Maintain high-speed, low-loss signal transmission across long distances.
- Optical Coherence Tomography (OCT): Single-mode and double-clad couplers provide precise light splitting for imaging systems .
- High-Power Laser Systems: Fusion couplers handle high optical power with minimal thermal degradation .
- Mixed Network Environments: Couplers support both single-mode and multimode fibers, enabling seamless integration in hybrid networks .
Performance Considerations
- Insertion Loss: Critical for maintaining signal integrity; fusion couplers offer the lowest loss.
- Bandwidth: Micro-optic and PLC couplers provide ultra-broad bandwidth for multi-wavelength applications.
- Polarization Extinction Ratio: Important for polarization-sensitive systems; micro-optic couplers excel in this metric.
- Power Handling: Fusion couplers are preferred for high-power applications, while PLCs are limited by epoxy-based paths.
- Thermal Stability: Micro-optic and fusion couplers maintain performance under high-temperature conditions . High-performance fiber optic couplers are essential components for modern optical networks, offering precision, reliability, and flexibility across a wide range of applications, from high-speed data transmission to advanced sensing and imaging systems.
