Process of converting copper wire to optical fiber

Copper-to-fiber conversion involves using media converters or transceivers to translate electrical signals from copper cables into optical signals for transmission over fiber optic networks.

Overview of Copper and Fiber Networks

Copper cabling, such as Cat5e or Cat6, transmits data electrically and is commonly used for short-range connections and Power over Ethernet (PoE) applications. Its limitations include a maximum distance of roughly 100 meters and susceptibility to electromagnetic interference (EMI) and signal degradation over long distances. Fiber optic cabling, in contrast, transmits data as pulses of light through glass or plastic strands, supporting high bandwidth, long-distance communication, and immunity to EMI, making it ideal for backbone, campus, and industrial networks .

Conversion Hardware

The core of copper-to-fiber conversion is media converters or optical transceivers:

• Media Converters: Standalone devices that convert electrical signals from copper Ethernet ports into optical signals for fiber, and vice versa. They are often deployed in pairs, one at each end of the fiber span, to connect two copper-based devices over fiber .

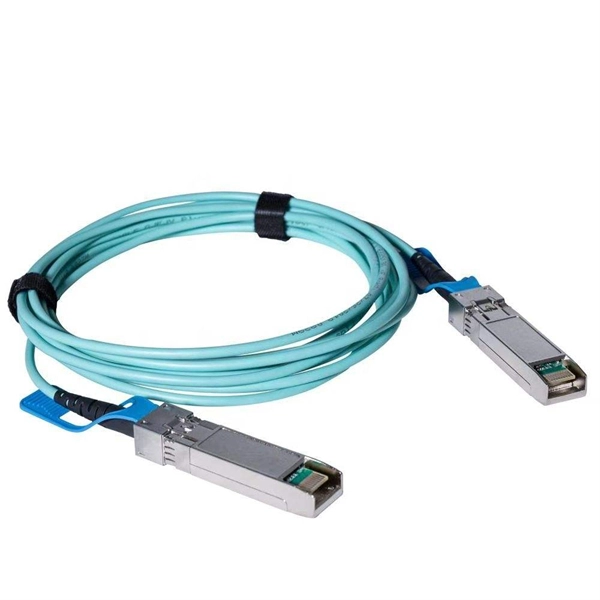

• SFP/GBIC Transceivers: Modules that plug into network switches or routers, allowing copper ports to interface with fiber without standalone converters. These modules support various fiber types (single-mode or multi-mode) and data rates .
• Managed Switches with Fiber Ports: Switches that integrate both copper and fiber ports, eliminating the need for separate converters and simplifying network topology .

Conversion Process

1. Assess Network Requirements: Determine distance, bandwidth, PoE needs, and environmental conditions. Copper supports PoE but is limited to short distances, while fiber requires separate power sources .

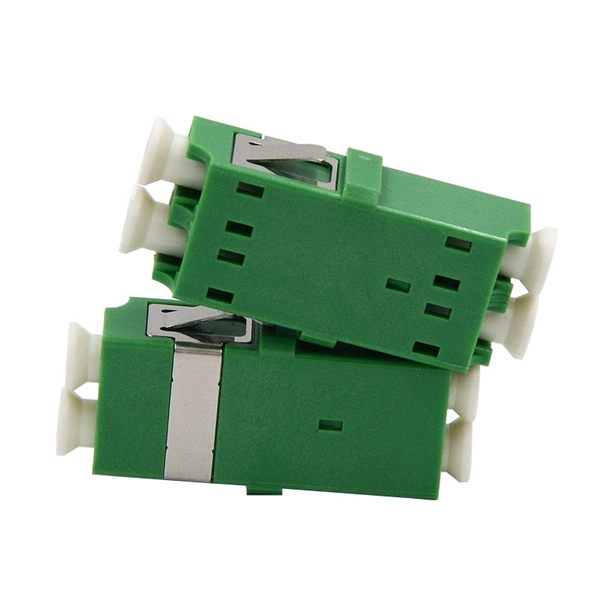

2. Select Appropriate Hardware: Choose media converters or SFP modules compatible with the copper and fiber types, data rates, and connector standards (e.g., RJ-45 for copper, SC/LC for fiber), .
3. Deploy Converters: Install converters at the points where copper networks interface with fiber. Single converters are used when one end is fiber and the other copper; paired converters are used when inserting fiber between two copper segments .
4. Connect and Test: Connect copper devices to the converter's copper port and fiber cables to the optical port. Test for signal integrity, latency, and compatibility, ensuring proper alignment with network standards .
5. Integrate with Existing Infrastructure: For networks with PoE devices, ensure power delivery is maintained on the copper side, and follow NEC guidelines for cable separation and thermal load management .

Benefits of Conversion

• Extends network reach beyond copper's 100-meter limit, up to several kilometers with fiber.
• Provides higher bandwidth and lower latency.
• Immunity to EMI and RFI, improving reliability in industrial or high-interference environments.
• Preserves existing copper infrastructure while upgrading backbone connectivity, reducing deployment costs . In summary, converting copper wire networks to optical fiber involves using media converters or transceivers to translate electrical signals into optical signals, carefully planning network topology, and selecting hardware that meets distance, bandwidth, and power requirements. This approach allows legacy copper systems to interface seamlessly with modern high-speed fiber networks.
